Sagitter SG LED KIT 7

Led kit 4 projectors 7x10W led RGBW/FC

SDJ offers one of the most extensive selections when it comes to ready to use
“plug & play” LED systems. The LED Kit series consists of a portable colour
changing LED set, suitable for any user, whether experienced or not. A practical
stand with 3 feet (supplied) supports the light bar, a pedal ensures easy control
of the entire system and two handy bags (included) provide fast and secure transport.
The second one of the series, can count on 7 high power 10W LED sources with 4 in 1
RGBW full colour technology; the high power and the addition of the white colour
makes this kit unique for indoor entertainment. The light bar is also equipped with
two adjustable side brackets which ensure fastening to structures or in “light up”
positions on the ground. For the most demanding users, a control has been added that
operates via the DMX signal, giving the possibility to fully customise all the
functions and performance of the entire system.

Light source
Kit 4 projectors 7x10W led RGBW Full Color
LED lifespan: >50.000h
LED refresh frequency: >400Hz flicker free

Optic system
Beam angle: 25°

Color system
LED source 4 in 1 RGBW Full Color
Infinite chromatic possibilities and colour temperature control

Effects
Linear Dimmer 0-100%
Electronic strobe: 1-20 flashes/s with adjustable speed
1 Auto mode can be recalled by DMX

Control and programming
5 DMX configurations available: 4/6/10/16/18 channels
Each projector can be controlled independently
Protocol USITT DMX 512
Master / Slave mode
Sound mode with adjustable mic sensitivity
Automatic mode with 6 different programs selectable from the display or
footswitch with independent adjustment of the speed
Color mode with 9 different pre-programmed color macros + 1 adjustable macro

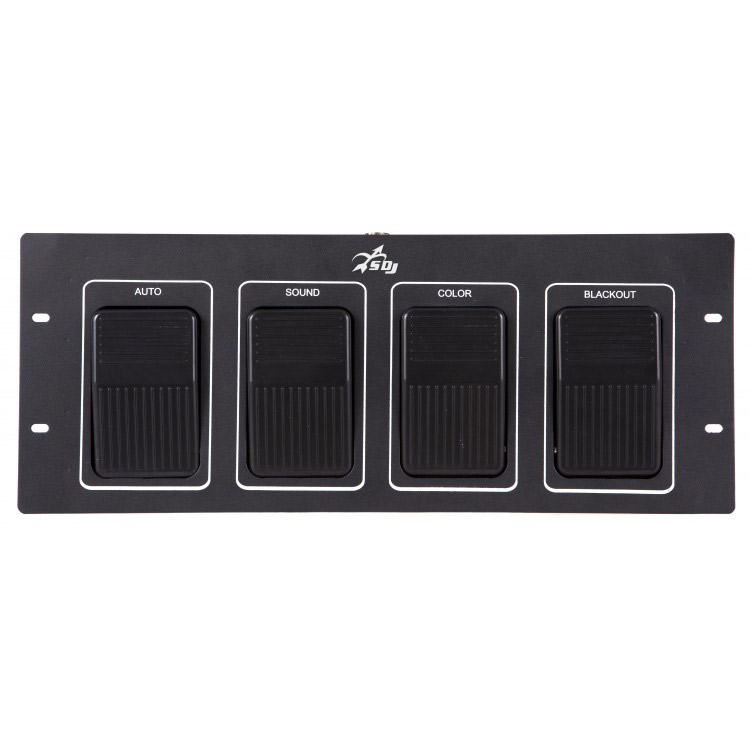

Footswitch control included: Blackout, Sound, Auto, Freeze

Structure and cabinet
Metal housing, black color
Red LED display
Mounting points: double adjustable bracket
"Light up" positioning
3-poles XLR in/out connection
IP rating: IP 20
Stand max. H 2800 mm with bag for transport included
Semi rigid bag for bar transport included

Power supply
Input Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 300W
Power IN/OUT connection with VDE socket
Power supply cable 1,5 mt included

Weight and dimensions
Bar Net weight: 8,5 kg
Stand Net weight: 4,5 kg
Bar dimensions: 1180x90x270 mm
