NUX, known for its innovative pedals and multi-effects, addresses the common issue of ground noise in high-gain
distortion setups. Traditional DC daisy-chains struggle with mixed analog and digital pedals, prompting NUX to

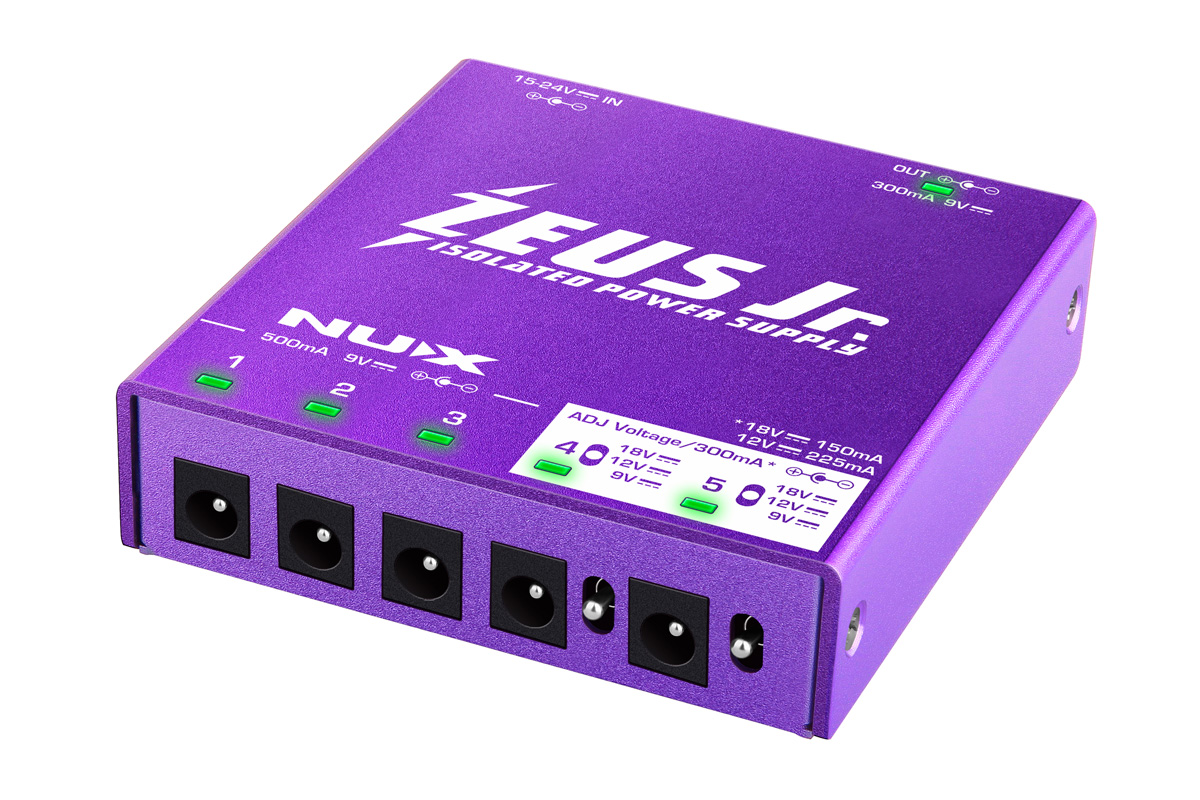

create ZEUS Jr.-a lightweight, universal, high-current, all-isolated power supply with ultra-low noise.
Many manufacturers rely on "toroidal transformers," which provide clean power but are bulky and inefficient. ZEUS
Jr. introduces a superior solution, blending power, efficiency, and portability, inspired by Zeus, the god of
thunder.
Concept
ZEUS Jr. delivers six isolated DC outputs:
Four high-current outputs (9V/500mA x 3, 9V/300mA x 1).
Two adjustable outputs (9V/300mA, 12V/225mA, 18V/150mA) for compatibility with various pedals like Fuzz and
Phaser.
This ensures stable, noise-free power for both analog and digital effects, meeting the needs of modern
guitarists.
Energy Efficiency
ZEUS Jr. achieves an average efficiency of 76.7% (15V input) and 77.3% (24V input), outperforming linear power
supplies.
Noise-Free Power
Maintains low noise with both low- and high-current pedals, including DSP-based effects.
Compact and Lightweight

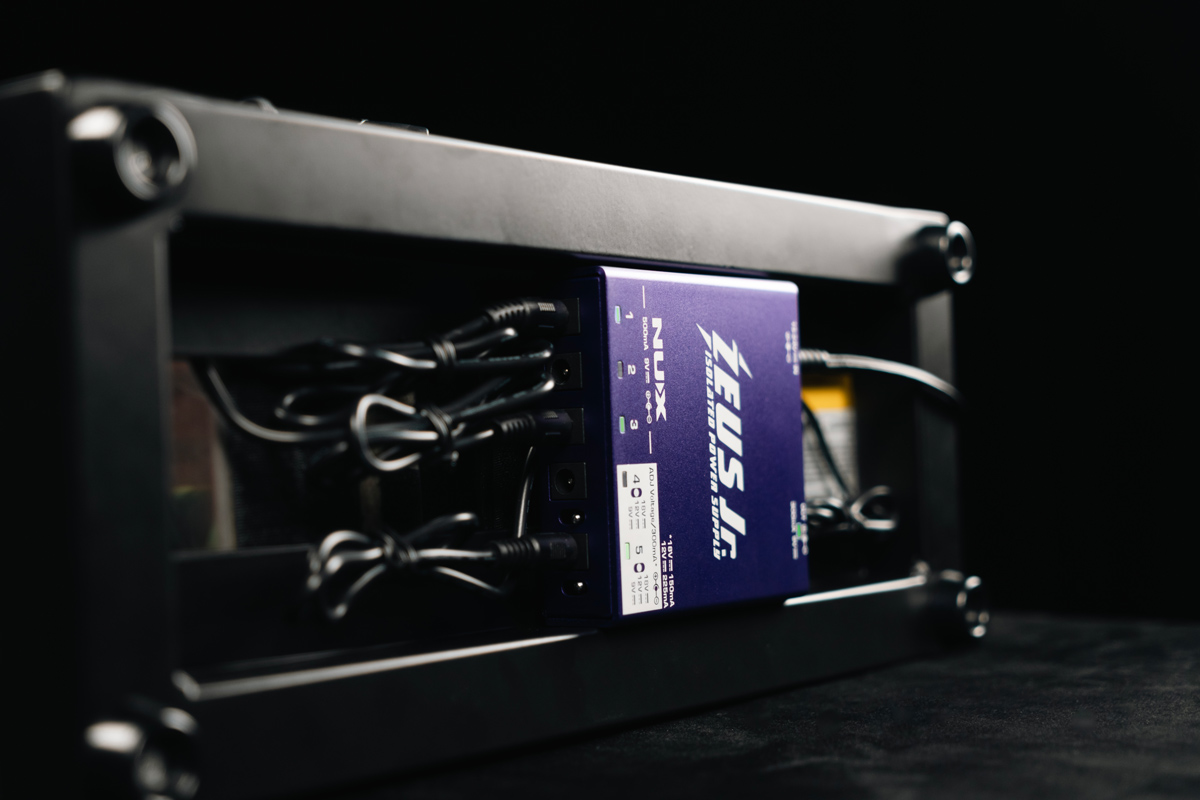

Designed to fit easily under any pedalboard.
Ultra-Low Impedance Output
Provides clean, dynamic power without relying on multi-stage filtering.
Ultra-low impedance design provides clean power and excellent dynamics without multi-stage filtering.
- 15-24V DC in with anti-reverse connection.
- 4 high-current, fully isolated 9V outputs with center-negative polarity.
- 500mA per 9V DC output powers nearly any pedal(except one provides 300mA).
- 2 selectable outputs offer 9V, 12V, or 18V DC options (9V/300mA | 12V/225mA | 18V/150mA).
- 6 pedal cables, 15V power adapter, and IEC cable included.
- Dimensions: 90mm(L) x 88mm(W) x 24mm(H)
- Weight: 184g
