This front-ported 2x10" combo is a great option for gigging bassists who want to cut through the mix without a big
rig.The CMD 102P V combo features the new Little Mark 58R Combo Head. All the connections and controls are on the
front panel leaving on the rear panel only the speaker outs and AC power socket, offering optimal ergonomics and
making everything more practical. As for previous version it has the new bi-band limiter, a MUTE switch and the
3-way switch that includes the options of Flat, Scooped or FSW. The wedge cabinet design allows to use it either
in a standard vertical position or as floor monitor, offering to you the best monitoring on stage.
NEW COMBO HEAD ERGONOMIC AND PRATICAL DESIGN
The new LITTLE MARK 58R combo head amp new design features all the connections and controls on the front panel
leaving on the rear panel only the speaker outs and AC power socket, offering optimal ergonomics and making
everything more practical.
4-BAND EQ NEW SETTING, OLD SCHOOL FILTER, 3-WAY SWITCH, MUTE
The 4-band EQ section features very effective controls, allowing you to easily find the sound you want, boosting
or cutting 16 db of each of the band to cover all the tonal nuances needed in any genre of music. Additionally the
Old School filter cuts out your highs and gives you a round and smooth tone, and the 3-way switch allows to choose
between a super-balanced FLAT tone, a
SCOOPED preset that drops the mids while boosting the lows and highs giving a great slap sound or to selects FSW to
control MUTE and SCOOPED EQ connecting an optional dual footswitch. MUTE function is also available via handy MUTE
switch on the front panel.
BI-BAND LIMITER
Our new bi-band limiter responds faster and more dynamically to your playing than traditional limiters do, and
lets your high end “breathe†more, for a more natural sound. It makes our amp heads the best choice for anyone
who enjoys a quick, punchy attack at high volumes.

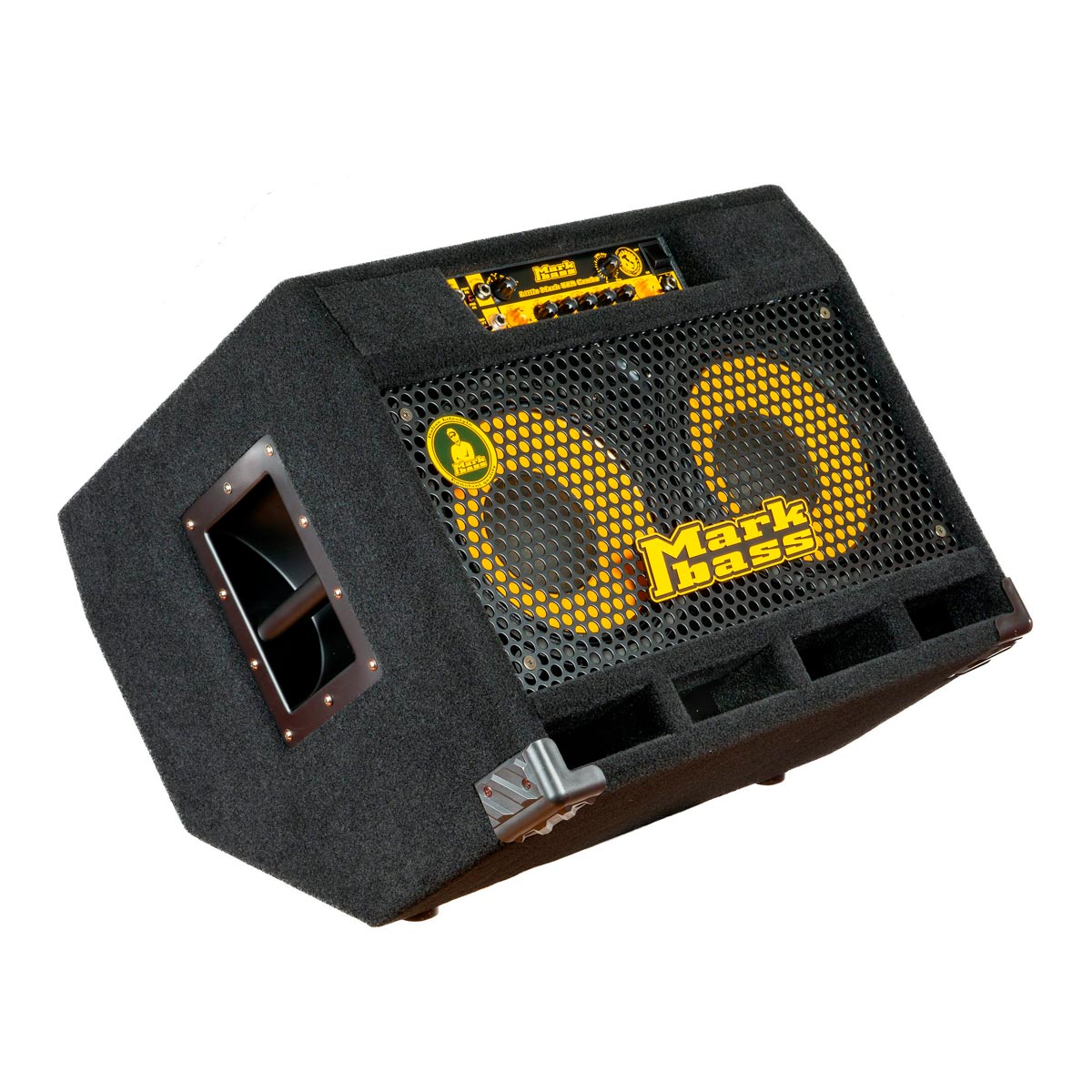

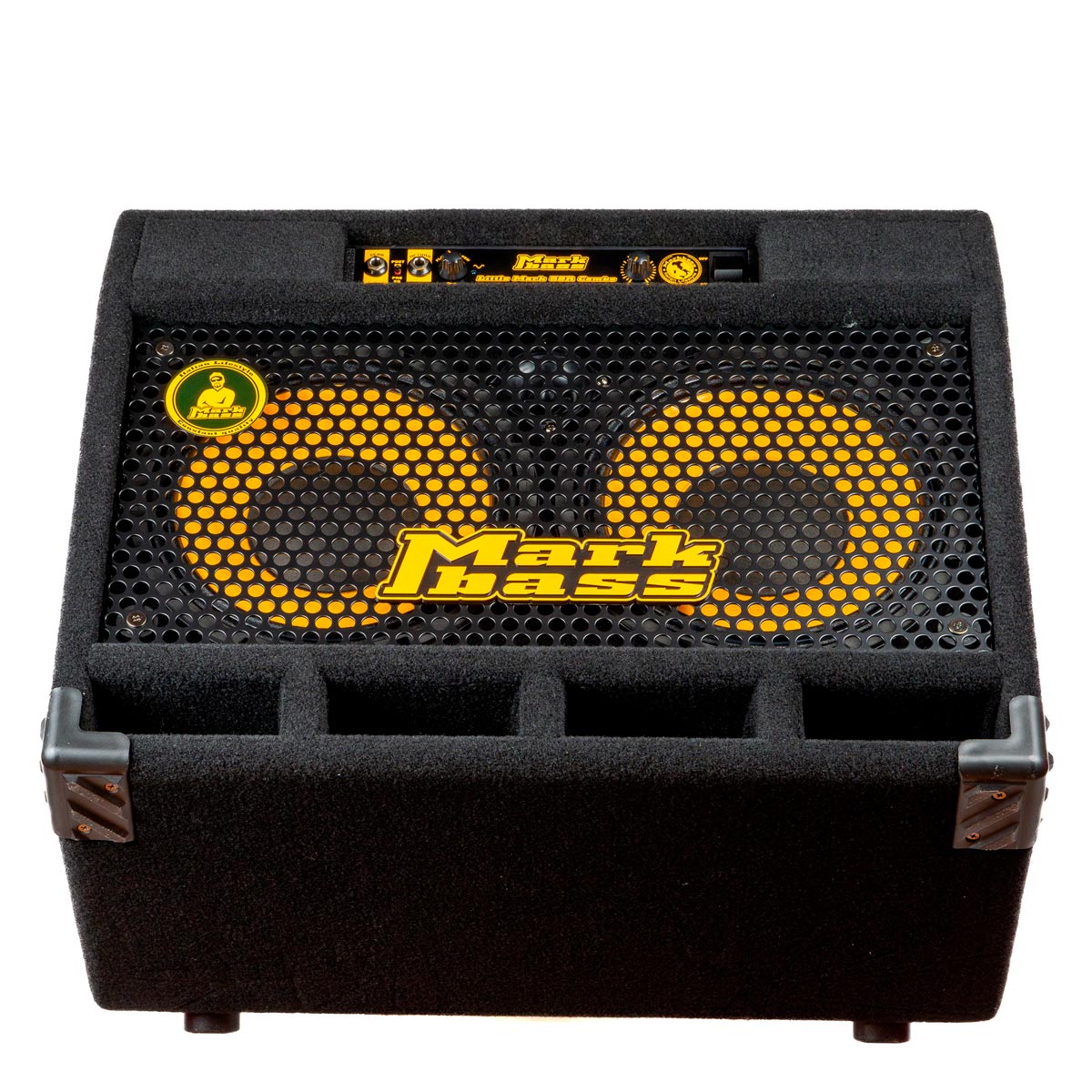

WEDGE DESIGN
The angled cabinet design allows the unit to be used either as a floor monitor or in standard position. The angled
position is fantastic in applications where your amp is mostly for your personal monitoring, so you can perfectly
hear yourself on any stage.
STACK WITH AN EXTENSION CABINET
If you add an external cabinet to the CMD 102P V combo, you can fill a large venue with headroom to spare. This
combo stacks perfectly with any Traveler or Standard series cabinets.
SPEAKER
2 x 10"
TWEETER
Piezo
SPEAKER POWER HANDLING
400W RMS (AES Standard)
REFLEX
Rear
IMPEDANCE
8 ohms
CROSSOVER FREQUENCY
3.5 kHz
FREQUENCY RESPONCE
40Hz to 18KHz
SENSITIVITY DB SPL
101
CONTROLS
GAIN | 4-BAND EQ | OLD SCHOOL FILTER
MUTE SWITCH | MASTER VOLUME
LINE OUT level control | PRE/POST EQ e GND switches
3 WAY SWITCH: flat/scooped-mid/FSW
OUTPUT POWER
500W RMS @ 4 ohm, 300W RMS @ 8 ohm
OTHERS
BI-BAND LIMITER | FSW (OPTIONAL) mute/scooped
DIMENSIONS
58.5 cm (w)47 cm (h)47.5 cm (d)
WEIGHT
38.58lbs / 17.5 kg
