ERGO SYSTEM
POWERFUL, VERSATILE and ULTRA-PORTABLE AUDIO SYSTEM
The ERGO is an innovative portable audio system-concept with outstanding, accurate sound!
Choose the ERGO System fitting your needs, whatever the application: from small to large audiences,
any kind of event or permanent installation. The satellites column design allows to rotate its
configuration up to 360°, this is important for both the audience and the players, since hearing
everything greatly enhances both the performance and the listening experience.
They can also be used as personal monitors or as home desk.
Let yourself and the audience hear your Music at its Best! Always hear everything,
everywhere in the venue!
MAIN FEATURES:
TOTAL POWER 1.400 W
123 dB max SPL
FREQUENCY RESPONSE 50 Hz - 20 kHz
4 x 2" neodymium full-range woofer
2 x 8" subwoofer
Innovative DSP processor
Modularity, pole mountable, easy set-up and to transport
360° loudspeakers rotation
MULTIPLE APPLICATIONS:
PIANOBAR
BANDS
PERMANENT INSTALLATIONS
MEETING HALLS
HOME THEATER
ACOUSTICAL
FREQUENCY RESPONSE : 50 Hz - 20 Khz
SUB : 2 x 8” , 4 Ohm
SATELLITES : 4 x 2”, 16 Ohm
VERTICAL COVERAGE ANGLE : 30°
HORIZONTAL COVERAGE ANGLE : 120°
MAX SPL : 123 dB

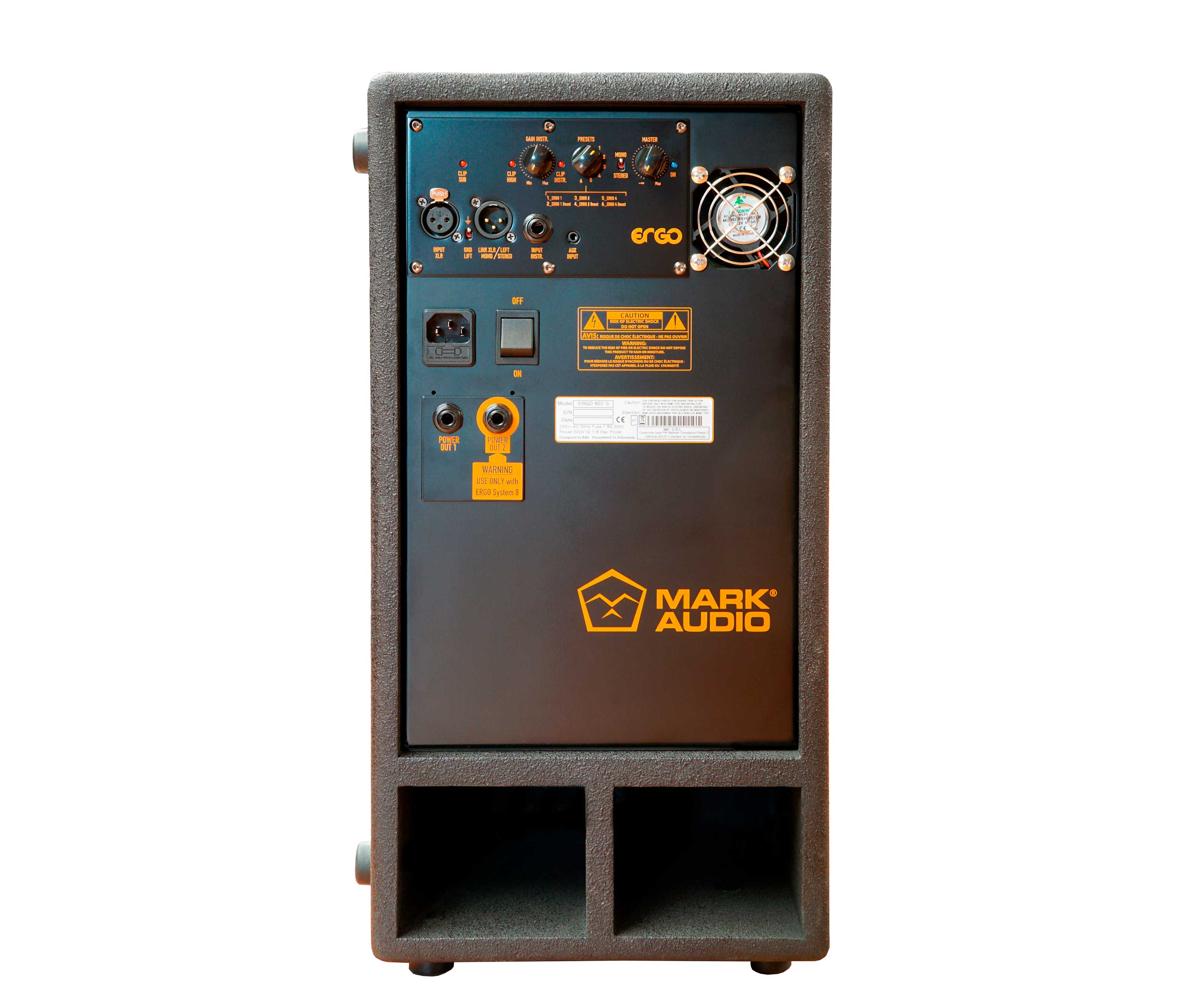

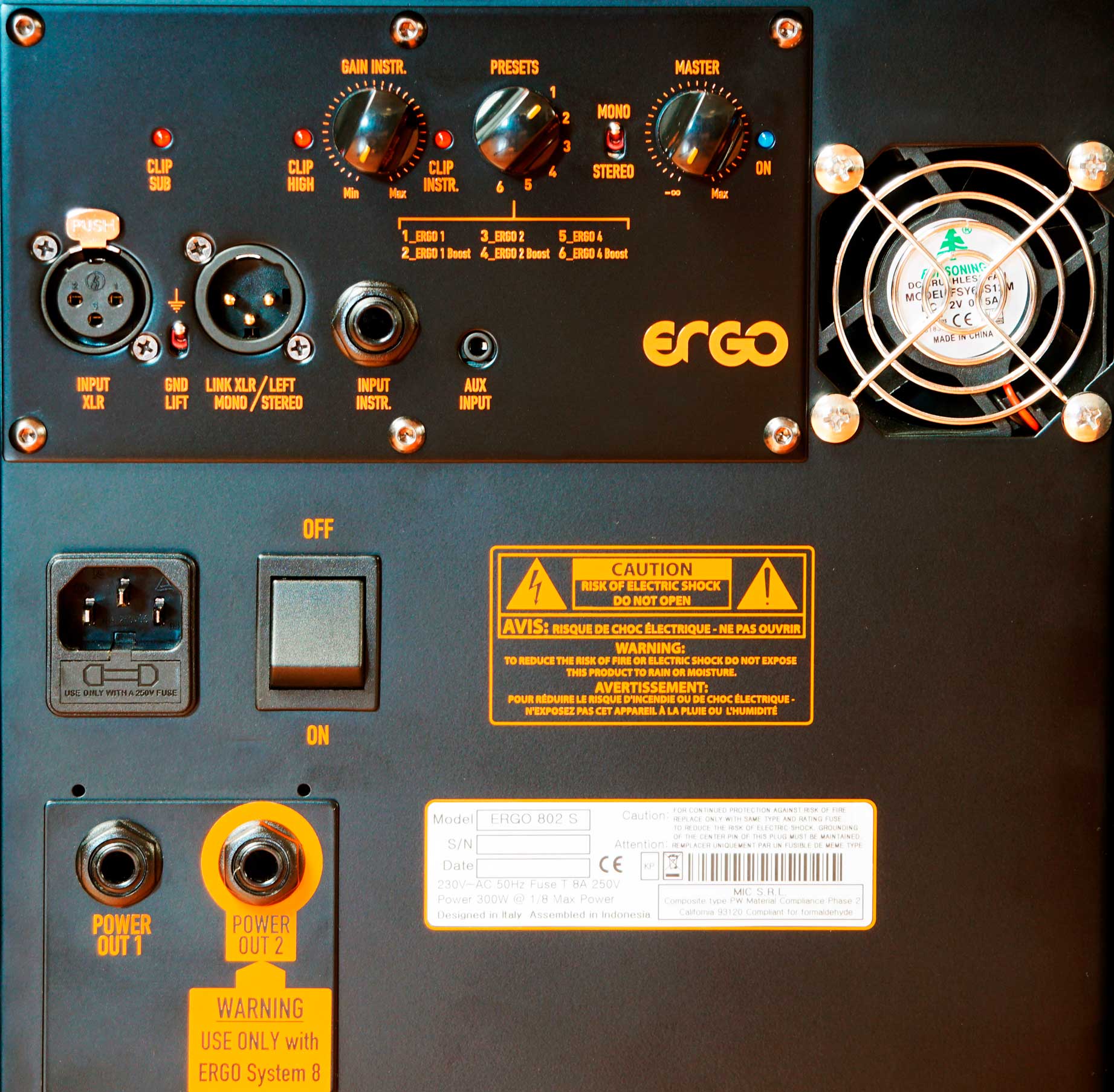

INPUT/OUTPUT
OUTPUT CONNECTORS : XLR male
INPUT CONNECTORS : Jack - XLR female - AUX
INPUT SENSITIVITY : -1,1 dBu (@ 1 kHz)
PROCESSOR
CROSSOVER FREQUENCIES : 180 Hz
PROTECTIONS : Thermal, rms
LIMITER : Soft limiter
CONTROLS : Volume, EQ
AMPLIFIER
TOTAL POWER (4ohm) : 1.400 W PEAK
HIGH FREQ. POWER (4ohm) : 400 W PEAK
LOW FREQ. POWER (4ohm) : 1.000 W PEAK
TOTAL POWER RMS (4ohm) : 700 W RMS
HIGH FREQ. POWER RMS (4Ohm) : 200 W RMS
LOW FREQ. POWER RMS (4Ohm) : 500 W RMS
COOLING : Convection
CONNECTIONS : VDE connector
CABINET
CABINET MATERIAL : Multiply poplar
HANDLES : 1 Top
POLE MOUNT/CAP : Yes
COLOUR : Black
PHYSICAL
SYSTEM HEIGHT (Vertical Sub) : min 161 cm (63,4') / max 206 cm (81'')

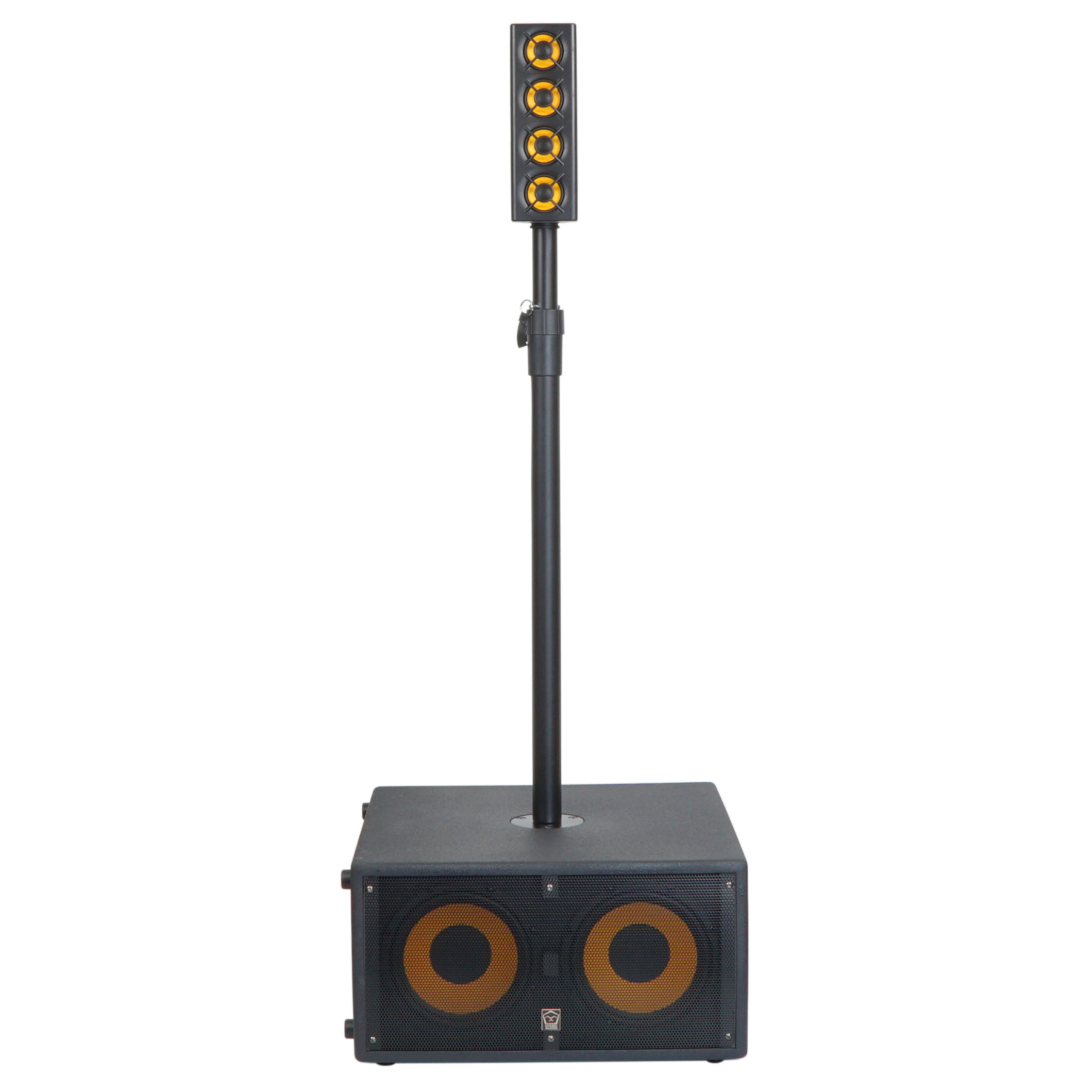

SYSTEM HEIGHT (Horizontal Sub) : min 135cm (53") / max 180cm (71'')
SYSTEM WIDHT : 52cm (20'')
SYSTEM DEPTH : 52cm (20'')
SATELLITES WEIGHT : 1 kg (2,2 lbs)
SUBWOOFER WEIGHT : 16 kg (35,2 lbs)
TOTAL WEIGHT : 17 kg (37,4 lbs)

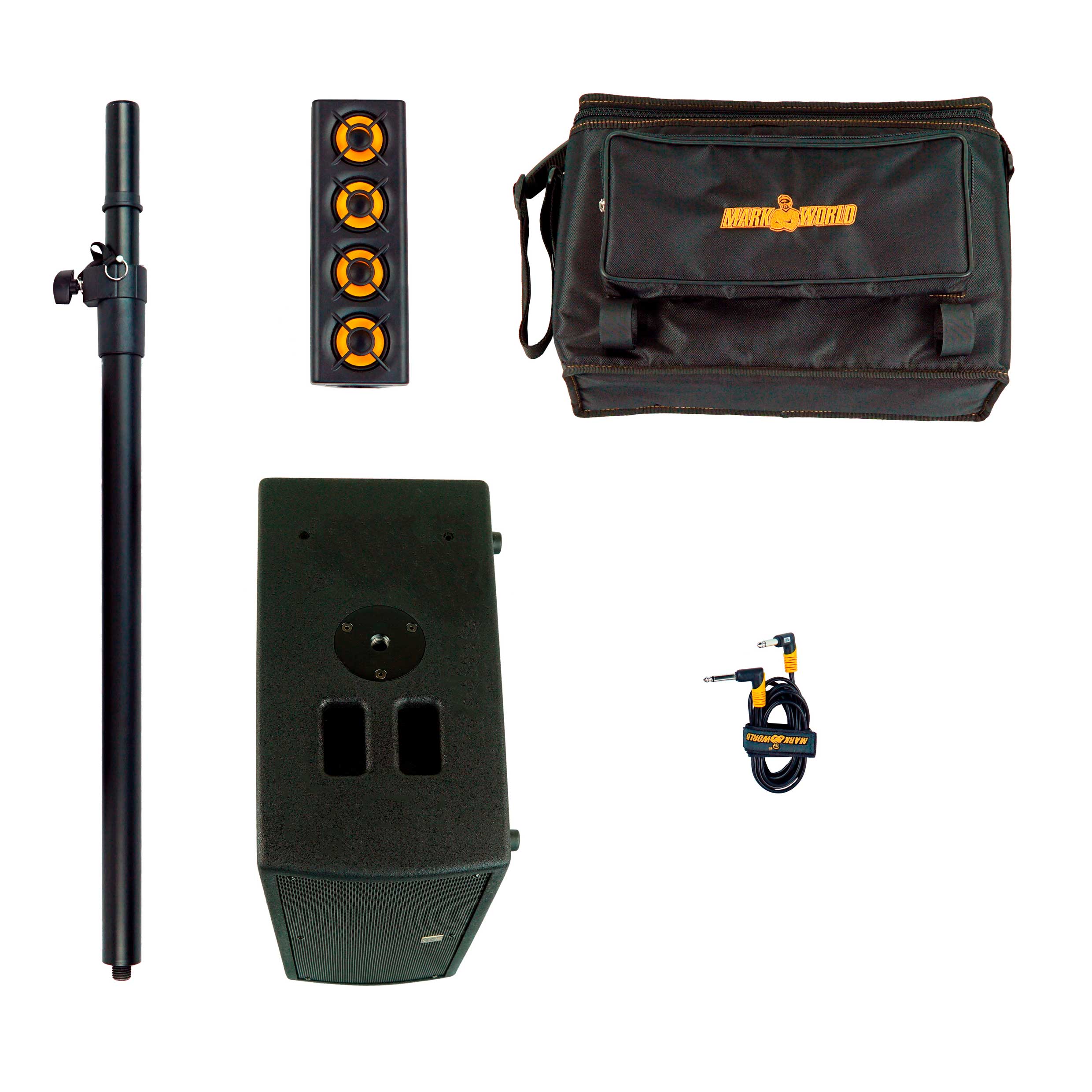

ACCESSORIES
OPTIONALS : Satellites transport bag included
OPTIONALS : Subwoofer cover optional
